Dependency Management

Bitwarden uses Renovate for automating dependency updates. Renovate will automatically create pull requests for dependencies on a weekly cadence. Security updates will generate pull requests immediately.

Renovate configuration​

Renovate is configured by a .github/renovate.json (or .github/renovate.json5) file in each repository. We follow an internal template for consistency. The template is available in the template repository.

It is recommended that all repositories extend the default configuration from our shared configuration repository that is included when a new repository is created from the template.

The default configuration:

  • Combines minor and patch changes into one rollup pull request, per package manager.
  • Uses a dependency dashboard so we can see what pull requests are not yet created but still manage the workload.
  • Manages updates with semantic versioning and lock file updates. Rebases are disabled.
  • Allows an unlimited number of pull requests to be created.
  • Includes major updates (the latest) as individual pull requests. Monorepo updates are also grouped.
  • Schedules runs to happen on the weekend when more Actions workers are likely available for the organization, but also on a two-week basis to better align with the release schedule.
  • Certain build pipeline dependencies are pinned to specific versions.

See Management Strategies below for more detail on why we have chosen these configuration options.

All package managers are recommended to be left enabled should a repository expand over time to include new ones, within reason for what might be in the scope of the repository. Update schedules and how many pull requests are up to the individual repository. Exceptions, other package managers, and dependency-specific configuration may be needed.

Consider best practices with pinning dependencies, especially at the root. Development dependencies such as formatters and linters deserve communication and coordinated rollout across all teams so that code style is consistent per our standards and the editor configurations seen in the template repository itself.

Ownership​

Bitwarden's repositories fall under two categories: team-owned and shared.

Team-owned repositories​

Team-owned repositories are "owned" by a single team from a dependency standpoint. The assigned team is responsible for reviewing, approving, and merging dependency updates. Some reasons a repository might be team-owned are that it's primarily developed by that team, or to balance out the number of dependencies teams have to manage.

Some examples of team-owned repositories are directory-connector and key-connector.

Shared repositories​

Shared repositories don't have any direct owner. Instead each dependency is allocated to a team. The team assigned to a dependency is responsible for reviewing, approving, and merging that dependency. For major upgrades the team is responsible for coordinating the upgrade with the other teams.

Examples of shared repositories are server and clients.

Adding a dependency to a shared repository​

When adding a new dependency to a shared repository it must be owned by a team. It's up to the engineer adding the dependency to determine the appropriate team and get their approval for the addition before merging the PR. Please check Renovate configuration for more information on how to assign ownership.

Example PR​

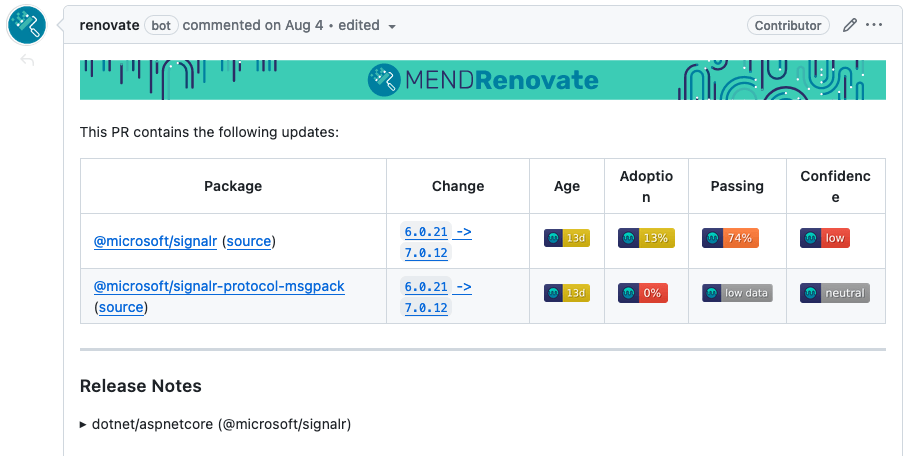

Screenshot of a Renovate PR

Example Renovate PR

Renovate PRs contain several areas of interest. The above example PR contains two grouped dependencies. The PR proposes to upgrade the dependencies from 6.0.21 to 7.0.12. The age of the version is 13 days, and 13% of repositories have adopted this version. Renovate has seen a 74% test success rate across Renovate-managed repositories and has a low confidence in the change. For more details read Renovate documentation about Merge Confidence.

Management strategies​

Our Goal: A sustainable review cadence

The overarching purpose behind our use of these strategies is ensuring that our dependencies are as up-to-date as possible, while opening PRs for review at a frequency and level of complexity that is sustainable for all responsible teams.

Renovate is currently scheduled to automatically create pull requests every 2 weeks. The goal of our dependency management process is for the teams to review and merge the opened pull requests in the same 2-week cadence -- to avoid a large backlog of PRs and out-of-date packages accumulating.

Dependency pinning strategies​

Pinned dependencies​

Why do we pin dependencies?

For background on why we pin, see Renovate's documentation.

For our client projects that are not intended to be consumed as libraries our strategy is to pin all dependencies. In addition, we use package-lock.json and Cargo.lock lock files, as recommended by Renovate.

Unpinned dependencies​

For projects that are intended to be consumed as libraries (e.g. our SDKs) our strategy is not to pin dependencies so that consumers are not locked in to a particular version. As Renovate recommends:

It is usually a bad idea to pin all your dependencies because it will introduce an unnecessarily narrow range (one release!) and cause most users of your package to bloat their node_modules with duplicates.

Instead, the recommended configuration for libraries is to pin only devDependencies and leave the others as ranges.

Dependency grouping strategies​

We use grouping in Renovate to group related dependencies into a single PR.

There are two different levels at which our grouped dependencies are configured:

  1. Our Renovate configuration uses the “monorepo presets” that Renovate defines. These are groups of dependencies that Renovate has grouped together through the group:monorepos configuration, which we have enabled. If we use any of these pre-grouped dependencies, Renovate will automatically group them together into a single PR.
  2. Grouping that we have put in place in our Renovate configuration. We have several different ways that we configure to do this, which we’ll detail below.

Why we group dependencies in our configuration​

If a group of dependencies are closely related, we may decide that they should move as a unit through the review and QA process. We’ll do this if we want to:

  • Group by domain to avoid errors resulting in inter-dependency version requirements
    • If a dependency relies on other related dependencies to have been updated along with it, we need to group these together to avoid errors when building. Sometimes we do this for all update types, and sometimes we only do this for major updates, depending on when we feel like inter-version dependencies exist.
  • Group by domain or by package manager to reduce the noise of too many PRs
    • This is a trade-off, and we acknowledge that doing so will make identification of any issues stemming from the update harder.
    • Sometimes we only do this for minor or patch updates, as we acknowledge the trade-off with identifying breaking changes and want to have separate PRs for major updates.
Grouping and team ownership

Grouping does not equal team ownership. In other words, a PR that has dependencies owned by multiple teams would have multiple reviewers on it. As a matter of practice, we try to assign all grouped dependencies to a single team, so that only a single team is responsible for the review.

Dependency update type strategies​

What are update types?

“Update type” refers to the classification of a version as major, minor, or patch.

Combining update types​

For all of our dependencies, we default to:

  • Combining minor and patch updates into a single PR for a given dependency, and
  • Not combining major updates with any minor or patch updates for a given dependency

We do this because we want to reduce the noise of separate minor and patch updates, but we also don’t want to miss out on incremental minor/patch updates while we do the larger body of work for a major update. For example, if we’re updating Angular to version 20, we would want to receive minor and patch updates for version 19 while the PR for the version 20 update is open and being evaluated.

This combination of updates is for an individual dependency. This is distinct from grouping multiple dependencies into a single PR, which is covered in Dependency grouping strategies.

Managing patch updates​

In order to maintain a sustainable number of update PRs for our teams to review, we have elected to send most patch updates through Renovate's Dependency Dashboard Approval flow. This means that Renovate will not automatically generate a PR for these updates; rather, it will list them in a "Pending Approval" section of the Dependency Dashboard. If a team desires to update the dependency to pull in a bug fix that affects our code, they can trigger the pull request to be created from the dashboard.

Dependency reviewer assignment strategies​

In order for a dependency update PR to successfully move through the review process, it must be assigned a reviewer. We do this one of two ways:

  • Through GitHub CODEOWNERS
  • Through reviewer assignment in Renovate

Assigning reviewers through CODEOWNERS​

When a team owns the file updated by a dependency update (e.g. package.json and package-lock.json), they will be added as reviewers on the pull request without any configuration in Renovate.

This will be the case for:

  • Repositories owned by a single team, and
  • GitHub Action workflows on shared repositories
    • In this case, the workflow files themselves are updated by Renovate, meaning that the team who owns the workflow will be added to the PR.

Assigning reviewers through Renovate​

When the package and lock files are not owned by CODEOWNERS (as is the case for any of our shared repositories), we explicitly assign ownership of each dependency by specifying the responsible team in Renovate configuration in the repository.

Renovate uses a concept called PackageRules that allows us to specify ownership of dependencies and ensure the appropriate team is added as reviewers. Below is an example assigning @angular/core to the Platform team.

{
  "matchPackageNames": ["@angular/core"],
  "description": "Platform owned dependencies",
  "commitMessagePrefix": "[deps] Platform:",
  "reviewers": ["team:team-platform-dev"]
}

Dependency review workflow​

Major upgrades

Major upgrades are an exception to this time frame, as these can take longer to coordinate. The team should make an effort to coordinate scheduled major updates and resolve deprecations in advance.

A Renovate PR may contain a single dependency or a group of related dependencies. At Bitwarden, we typically group dependencies we know are related and should be upgraded at the same time. We try to keep groups as small as possible to minimize the impact and increase confidence in approving and merging.

Jira ticket​

A Jira ticket will automatically be created for each Renovate PR that is opened. It will be assigned to the appropriate team based on the dependency ownership.

The Jira ticket should be used to track the work through sprint planning, prioritization, review, and testing.

Review​

A typical dependency workflow involves the following steps:

  1. Move the Jira ticket to In Progress.
  2. Read the proposed changes.
  3. Review the release notes of each dependency, for each released version between the current and the proposed upgrade. Identify if there are any deprecations or breaking changes affecting our code.
    1. For breaking changes, either resolve them yourself, or for major changes, coordinate with the other teams.
    2. For deprecations, create high priority Jira tickets on the affected teams' backlogs with a due date at least one sprint before the next scheduled major release of the dependency.
  4. Verify CI status.
  • This may also include re-running any failed workflows due to insufficient permissions when Renovate created the pull request.
  1. If test coverage is lacking, check out locally and manually confirm a few key areas.
  2. Review the proposed code changes and approve the PR.
  3. Update the ticket to include testing notes for QA.
    • Testing notes should include:
      • What areas of the codebase are affected by the dependency to help isolate future problems.
      • Recommendation for manual QA testing only if the developer identifies this as a high-risk update.
  4. Merge the PR.
  5. Assign the Jira ticket to QA.

Changing a generated PR​

When reviewing the PR, you may rarely have to make changes to the branch yourself.

However, caution should be taken when doing so. If a non-Renovate user pushes changes to the Renovate-generated PR, Renovate assumes that it is no longer responsible for maintaining the PR. This means that further updates to the package(s) included in the PR will be blocked until the modified PR has been merged.

What this means is that if you do need to make changes during review, you should maintain ownership of the PR through the rest of the workflow and not leave the PR open for an extended period.

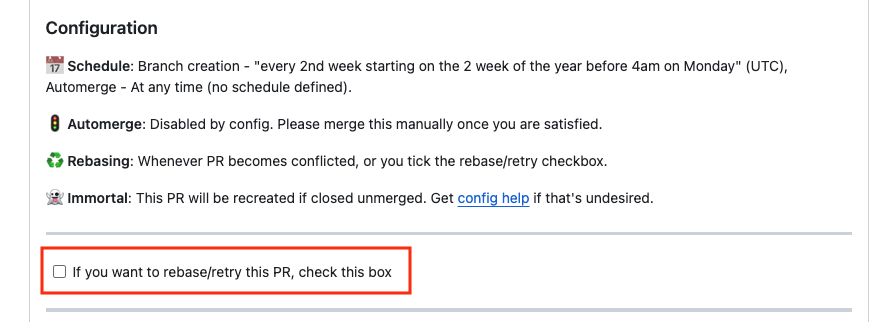

If you do want Renovate to take over managing the dependencies in the PR again, you can request that by selecting the "rebase/retry" checkbox on the PR description.

Updating a PR

Type Definitions

Many of our client dependency packages have corresponding type definition dependencies (e.g. @types/jest for our Jest dependencies). These packages do not contain any business logic.

In order to streamline the process and avoid unnecessary QA time, it is sufficient to handle these by ensuring that all CI jobs pass successfully, merging the PR, and marking the ticket as Done.

QA testing​

By default, dependency updates do not undergo individual testing by QA. However, we do want our QA teams to be aware of the changes so that they can react appropriately if problems occur during regression testing. For this reason, we assign each dependency ticket to our QA team for review, along with a recommendation for manual testing when necessary.

If the QA engineer agrees that manual testing is not required, they will mark the ticket as Done.

If the QA engineer or the developer recommends manual testing, QA will perform the testing with the scope defined in the testing notes, marking the ticket Done only when testing is successful.

Reverting​

In the event QA finds a regression, the developer is responsible for assessing the impact and either immediately revert the update or resolve the regression in a new PR.

Closing irrelevant PRs​

Sometimes Renovate will create PRs for dependencies that we are currently unable to upgrade for various reasons. For example, contributing-docs depends on docusaurus, which supports specific versions of react. We cannot upgrade react until docusaurus supports it.

In those cases the team can comment on the PR with a reason for not yet upgrading and either close or defer it until a later date. If a team closes a PR it is expected that its members monitor the dependency and revisiting the upgrade in the future.
